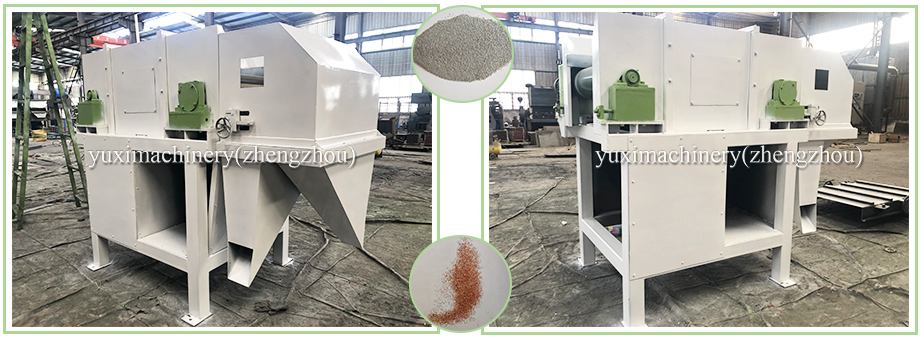

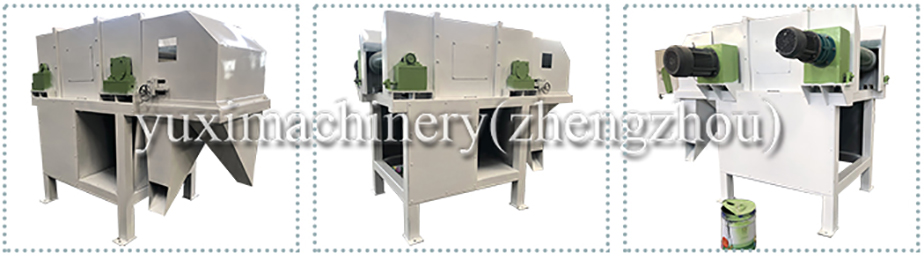

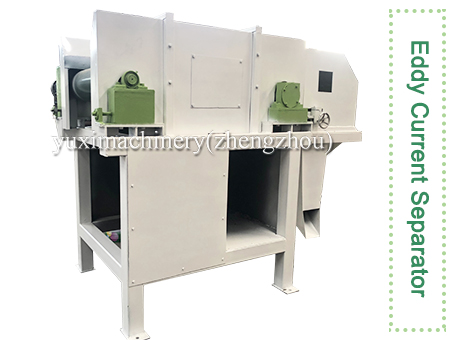

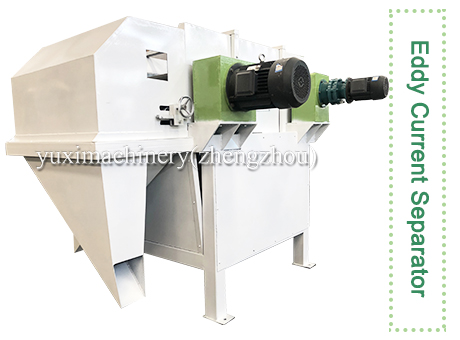

Eddy Current Sorting Machine
Eddy current sorting machine is mainly used for from industrial waste. Domestic garbage waste to recover copper, aluminum and other non-ferrous metals, can be widely used in garbage disposal, recycling of waste electrical appliances and other environmental protection fields, as well as non-ferrous metal processing industry materials processing and other industries.
Introduction
1、Excellent sorting effect on a variety of non-ferrous metals, strong adaptability, reliable mechanical structure, with strong repulsive force (adjustable), high sorting efficiency.
2、Nonferrous The sorting assembly is the core component of the machine, which consists of rotating drum, material conveying system (including material conveyor belt, conveyor belt driving drum and reducer motor).
2、Nonferrous The sorting assembly is the core component of the machine, which consists of rotating drum, material conveying system (including material conveyor belt, conveyor belt driving drum and reducer motor).
Working Principle
Eddy current sorting machine in the work, in the sorting magnetic roller surface to produce high-frequency alternating strong magnetic field, when there is a conductive non-ferrous metal through the magnetic field, will be induced in the non-ferrous metal eddy current, the eddy current itself will produce the opposite direction of the original magnetic field, non-ferrous metal (such as copper, aluminum, etc.) will be due to the repulsive force of the magnetic field and along the direction of its transport leap forward, to achieve separation from other non-metallic substances, to achieve the purpose of sorting; its main differentiation criteria is the ratio of material conductivity and density value, the ratio of high value than the ratio of low material easier to separate.
Usage
1, Car dismantling plant crushing material in the recovery of non-ferrous metals;
2, Scrap steel crushing tail material sorting non-ferrous metals copper aluminum zinc stainless steel, and other metals;
3, Copper and aluminum casting sand, melting ash in the recovery of aluminum and copper;
4, Scrap motor crushing material in the recovery of non-ferrous metals;
5, Incineration of printed circuit boards in the centralized recovery of non-ferrous metals;
6, Household waste in the recovery of non-ferrous metals;
7, Scrap household appliances and other end-of-life electronic products crushing material in the recovery of non-ferrous metals;
8, Household waste in the sorting of non-ferrous metals copper aluminum iron stainless steel, and other metals.
Advantages
Adopt PLC programmable control, one key start, simple operation;
Adopt imported bearings for long service life and good operation;
Adopt effective magnetic system protection for magnetic roller to prevent magnetic system from falling off when running at high speed;
Adopt special technology for the whole machine, precision build, very small noise and vibration when the equipment is running;
The whole machine is installed with various detecting and alarming devices, which can monitor the operation of each key component in real time.
Technical Parameters
Please leave a message for your requirements, the machine can be customized for you.
Related Products
| Model | YX-400 | YX-600 | YX-800 | YX-1000 | YX-1200 | YX-1400 |
|---|---|---|---|---|---|---|
| Magnetic roller diameter(mm) | 300 | 300 | 300 | 300 | 300 | 300 |
| Magnetic roller speed(r/min) | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 | 0-3000 |
| Belt width(mm) | 450 | 650 | 850 | 1050 | 1250 | 1550 |
| Capacity(t/h) | 2-4 | 4-6 | 5-10 | 6-12 | 2-13 | 8-15 |
| Power(kw) | 3.0+0.55 | 4.0+0.75 | 7.5+1.11 | 11+1.5 | 11+2.2 | 15+3.0 |
| Weight(kg) | 1000 | 1400 | 1800 | 2200 | 2400 | 2600 |
| Size(L*W*H mm) | 3100*1450*2000 | 3100*1833*2000 | 3100*2033*2000 | 3100*2233*2000 | 3100*2433*2000 | 3100*2633*1210 |
Please leave a message for your requirements, the machine can be customized for you.
