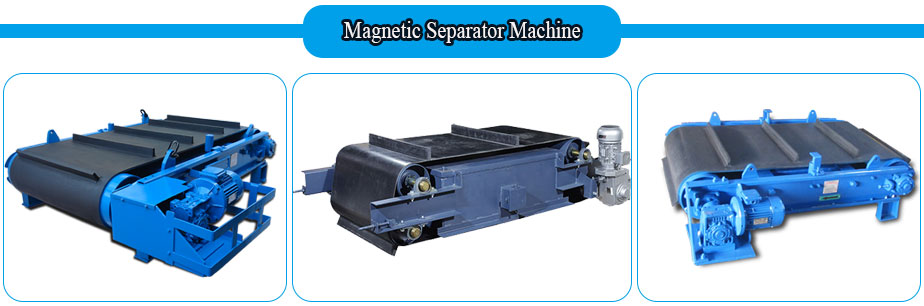

Magnetic Separator Machine
Magnet Separators are widely used in many different industries for material separation such as waste recycling, mining, food industry, etc.
We can provide the working sites of our customers' in various countries, please contact us if necessary.
Introduction

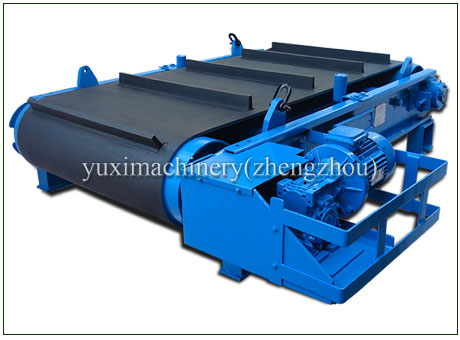

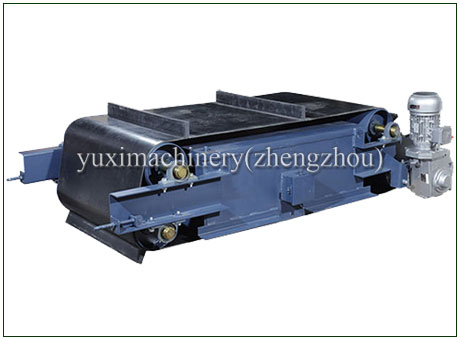

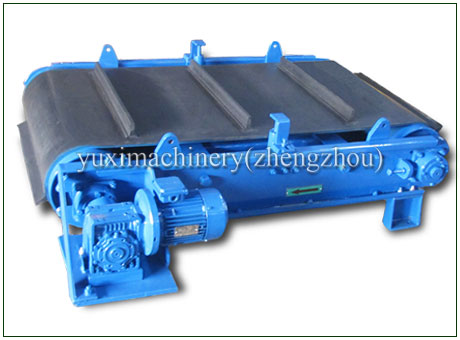

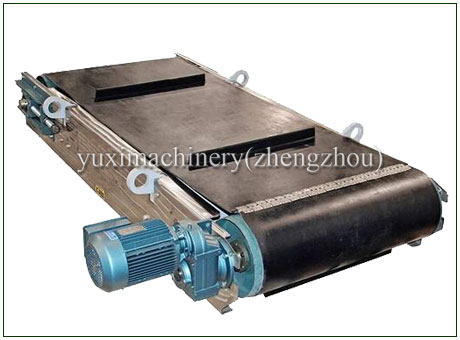

Permanent magnet self-unloading suspension self-unloading iron remover is the most effective equipment to remove a large number of ferromagnetic impurities in thick materials transported by conveyor belt or chute to protect the safety and stability of downstream processing equipment and improve the purity of products.
The permanent magnet self-unloading suspension self-unloading iron remover can be installed parallel or cross-over on the conveyor belt, automatically sucking iron, automatically unloading iron, and realize automatic continuous operation.
The main working principle is to separate black or non-ferrous materials by the magnetic field generated by permanent magnets or coils.
More Details
Please leave a message for your requirements, the machine can be customized for you.
Permanent magnet self-unloading suspension self-unloading iron remover is the most effective equipment to remove a large number of ferromagnetic impurities in thick materials transported by conveyor belt or chute to protect the safety and stability of downstream processing equipment and improve the purity of products.
The permanent magnet self-unloading suspension self-unloading iron remover can be installed parallel or cross-over on the conveyor belt, automatically sucking iron, automatically unloading iron, and realize automatic continuous operation.
The main working principle is to separate black or non-ferrous materials by the magnetic field generated by permanent magnets or coils.
More Details
Characteristics
1. The magnetic field is constant, the distribution is reasonable, the magnetic field depth is large, and the adsorption force is strong.
2. The compact structure requires a small installation space on the upper part of the conveyor belt.
3. Uninterrupted magnetic protection eliminates the possibility of a power failure and electrical component failure.
4. Available in a variety of sizes to accommodate a wide range of belt widths and load depths.
5. Easy to install and low operating costs.
Parameter1. The magnetic field is constant, the distribution is reasonable, the magnetic field depth is large, and the adsorption force is strong.
2. The compact structure requires a small installation space on the upper part of the conveyor belt.
3. Uninterrupted magnetic protection eliminates the possibility of a power failure and electrical component failure.
4. Available in a variety of sizes to accommodate a wide range of belt widths and load depths.
5. Easy to install and low operating costs.
| Model | Adapt to bandwidth(mm) | Rated lifting height(mm) |
Magnetic field strength ≤MT |
Material thickness ≤mm |
Powder ≤kw |
speed ≤m/s |
Oversize(mm) |
| YXC-6 | 600 | 175 | 70 | 120 | 1.5 | 4.5 | 1080 |
| RCYD-8 | 800 | 250 | 70 | 200 | 2.2 | 4.5 | 1390 |
| RCYD-10 | 1000 | 300 | 70 | 250 | 3.0 | 4.5 | 1660 |
| RCYD-12 | 1200 | 350 | 70 | 300 | 4.0 | 4.5 | 2000 |
| RCYD-14 | 1400 | 400 | 70 | 350 | 4.0 | 4.5 | 2165 |
| RCYD-16 | 1600 | 450 | 70 | 400 | 5.5 | 4.5 | 2400 |
| RCYD-18 | 1800 | 500 | 72 | 450 | 5.5 | 4.5 | 2590 |
| RCYD-20 | 2000 | 550 | 72 | 500 | 7.5 | 4.5 | 2840 |
Please leave a message for your requirements, the machine can be customized for you.
