Single Shaft Shredder

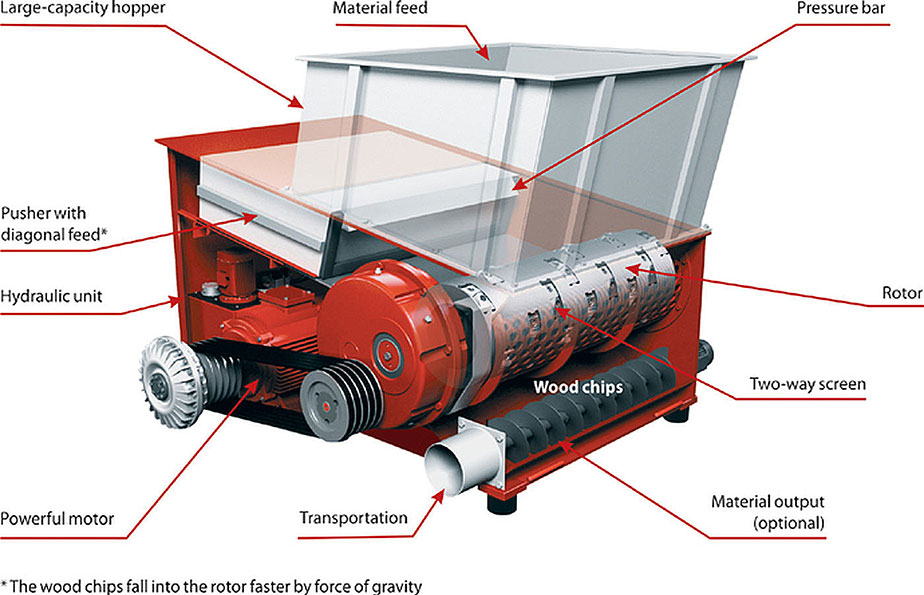

The single-shaft shredder is mainly composed of a blade main shaft, fixed blades, a feeding system, a hydraulic pushing system, a power system, and an electrical control system. Mainly used to shred wood, rubber, plastic, paper, and other waste materials.

Tel/whatsapp/wechat: +86-13674998188 (24 hours online)
E-mail: zhengzhouyuxi@yuximachine.com

Chat Online Leave Message

Description

YXS-series plastic shredder is designed to meet the waste recycling requirements of various industries and is suitable for plastic, paper, wood, fiber, rubber, domestic garbage recycling, etc., there are many types of recyclable materials.
According to the material feed size and output, And the output size of the final product to configure the optimal solution for the customer.

Shredder Structure

This series of single shaft shredder uses Siemens's programming control system. can be controlled automatically, with start, stop, reverse and overload automatic reverse control functions, with low speed, high torque, low noise.

Diameters

Model	YX-A600	YX-A800	YX-A1000	YX-A1200	YX-A1500
Diameter Rotary	255mm	255mm	255mm	300mm	300mm
Rotate the numberof blades	26	45	58	71	88
Rotate the cutter shaft speed	82rpm	90rpm	87rpm	87rpm	87rpm
Number of fixed blades	1	2	2	2	2
Hydraulic power	2.2kw	3kw	5.5kw	5.5kw	7.5kw
Working pressure	6-12Mpa	6-12Mpa	6-12Mpa	6-12Mpa	6-12Mpa
Crusher capacity	250-400kg/h	250-450kg/h	300-600kg/h	500-1000kg/h	600-1200kg/h
Feeding caliber	600mm*950mm	800mm*950mm	1000mm*1000mm	1200mm*1100mm	1500mm*1250mm
Power of main motor	22kw	37kw	55kw	75kw	45*2kw
Host weight	3500kg	4500kg	6000kg	8000kg	9500kg
External dimension	300016002000mm	330018002400mm	385020002700mm	400022002800mm	450025002800mm
Maximum yield	650kg/h	900kg/h	1000kg/h	1200kg/h	1500kg/h
